Paint-Flux
┃ Paint-Flux

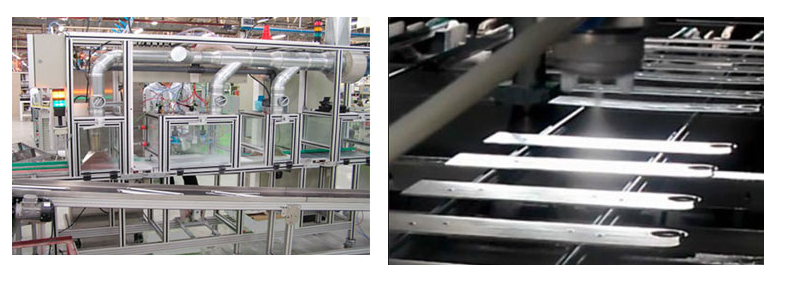

Aluminum Brazing It was developed for local area flux coating of Header, Tank and Fin before assembling parts for automation process.
Suitable for Re-Flux application process when brazing bonding between components is poor.
Features of Paint-Flux

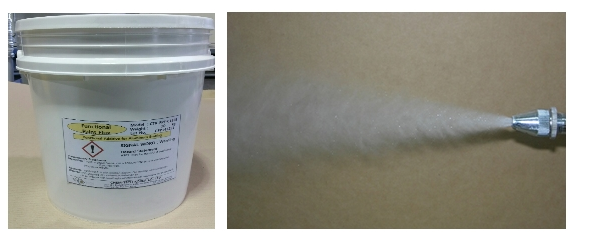

▶ It can be applied in spraying or dipping process without separate mixing and manufacturing process.
▶ It is possible to apply uniform coating, so the appearance after brazing is clear
▶ Selectable application possibility
▶ Diffusion property and fluidity by giving functionality to Al-Flux
▶ Excellent thermal decomposition
▶ It can be selected as lineup of various products depending on solid content, base (water, solvent) and adhesiveness.
┃Packing and specifications
◊ 950 ml Bottle / 1 KG
◊ 5 Liter Basket / 5 KG
◊ 20 Liter Basket / 20 KG
┃SPECIFICATION
Properties | Appearance | Oder | pH | Melting Temp. (℃) | Viscosity (mPas) | Solid Content(%) | Base | Adhesive Properties |
PF-WBL-100 | Milky White | Mild | 7.0 ± 1.0 | 560 ~ 580 | 50 ~ 100 | 15 ~ 30 | Water | O |
PF-OBH-100 | Milky White | Mild | 7.0 ± 1.0 | 560 ~ 580 | 1,000 ~ 5,000 | 30 ~ 60 | Glycol | O |
C-155B | Milky White | Mild | 7.0 ± 1.0 | 560 ~ 580 | 50 ~ 100 | 15 ~ 30 | Water | O |
PFFP-H2PO8 | Milky White | Mild | 7.0 ± 1.0 | 560 ~ 580 | 50 ~ 100 | 15 ~ 30 | Water | X |
PFO-127 | Milky White | Mild | 7.0 ± 1.0 | 560 ~ 580 | 1,000 ~ 5,000 | 15 ~ 30 | Glycol | O |
