classification

Uses and characteristics

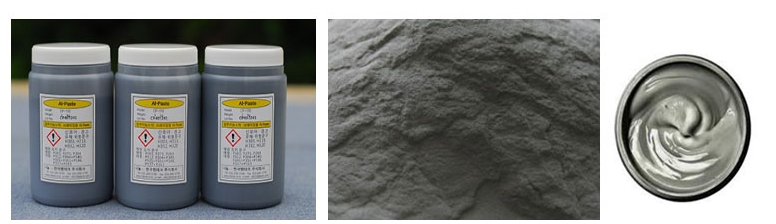

Universal AI-Paste

 (CP-110 Series)

  - When there is no restriction on the shape of parts

  - Applied to Brazing in case of failure

  - Applied to general furnace brazing

  - Excellent Filler Metal Flow ability (High viscosity, medium viscosity, low viscosity)

 Functional AI-Paste

 (FCP-120 Series)

  - when the base material contains Mg

  - When the excellent flow and fillability of Filler Metal is required

  - Applied to SUS-Al junction (Brazing characteristic varies depending on SUS type)

  - When you want high efficiency compared to general Al-Paste

    (High viscosity, medium viscosity, low viscosity

AI-Paste for curing at room temperature

 (QV-AP100 Series)

  - When there is a shower process after application of Al-Paste

  - Drying at room temperature (No need for extra drying process)

  - Applicable to general furnace brazing

  - Applied to Brazing in case of failure

 Properties

Al-12Si

(wt.%)

Al-Flux

(wt.%)

Cs-Flux

(wt.%)

Base

Melting

Temp. (℃)

 Mg

Contained

Alloy

 Adhesive

Properties

 CP-100

Series

20 ~ 50

5 ~ 30

-

Glycol

Mixture

577 ~ 600

X

 X

FCP-120

Series

20 ~ 50

5 ~ 30

0.1 ~ 20

Glycol

Mixture

577 ~ 600

O

 X

QV-AP100

Series

20 ~ 50

5 ~ 30

-

Solvent

Mixture

577 ~ 600

X

 O
