CleanTainer CLEAN, CleanTainer CLEAN-B
1. Clean Tainer is innovative liquid packaging article that combine cardboard with flexible plastic containers
2. Supplement of metal and plastic containers weakness, it’s free from rust and heavy-metal.
3. Can reduce the amount of storage space required
4. High oxygen barrier property .
5. Hygienic, eco-friendly product.
CleanTainer CLEAN
- One layer container made of hygienic special PE. High-Strength type resistant to Chemicals and heat.
General Industrial Chemicals(Except dangerous goods), Antiscales, Antiseptic solution, Adhesive, Developer, Liquid fertilizer, Agricultural Chemicals, Water paint, Ink, Shampoo, Battery Fluid, Formalin, Surfactant, Detergent, Dye, Cosmetic raw material, Mineral Water, Kidney Dialysis and so on.
CleanTainer CLEAN-B
- Multi-layer container. Gas Barrier Type. Used for packing perishable foods (Will be produced in the future)
Foods which need gas barrier property, Refined rice wine, Fruit wine, Vinegar, Cooking Oil, sauce, Liquid seasoning, Ketchup, Dairy Product, Flavoring and so on.
Charateristic
- Made by blow molding method.
CLEAN, CLEAN-B
Clean tainer is “Bag in Box” made by blow molding method. It’s more shock-resistant and can keep it’s shape until using out all the contents inside.

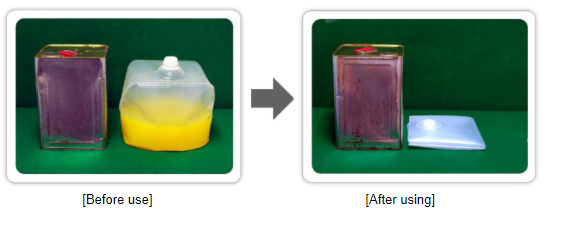

- Possible to save the storage space down
CLEAN, CLEAN-B
As clean tainer is thin and collapsible, it makes you possible to save the storage space down to 2/5 compared to traditional liquid containers

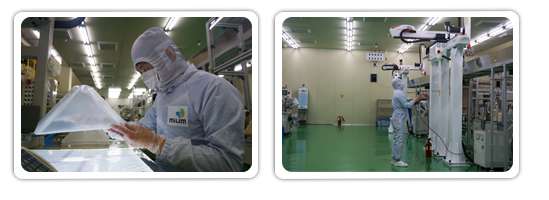

- As all production processes are carried out in clean room
CLEAN, CLEAN-B
The inner container is molded at a high temperature in a clean environment. Hygienic container.
- Can make it possible to store the content for a long time
CLEAN-B
High oxygen barrier property can make it possible to store the content for a long time
- The chemicals resistance is excellent
CLEAN, CLEAN-B
superior resistance against acid, alkali, water, humidity and cold.
- It cannot be serious and you can use
CLEAN, CLEAN-B
Free from rust and heavy-metal.
- It is easy to handle
CLEAN, CLEAN-B
Lightweight, easy-to-handle, stack able.
- The beautiful design becomes available
CLEAN, CLEAN-B
Various type of design is available for the outer box
- Stack able and Strong against the shock
Clean Tainer is light, strong, safe, stackable and shock-resistant.
Clean Tainer | Metal Can | Plastic Container |
Strength | Outer box is transformed but no leakage | Metal is easy to be distorted Then liquid leaks out | Container is cracked then liquid leaks out |
Multi-stage loading | 4 stage pallets X 2 pallets = 8 stage loading | 3 stage pallets X 3 pallets = 9 stage loading | 4 stage pallets X 2 pallets = 8 stage loading |
When Small amount of contents is discharged | While content is discharged, container gets samller so it’s difficult to be oxydized | While content is discharged, air easily comes in to the container and content is oxydized | While content is discharged, air easily comes into the container and content is oxydized |

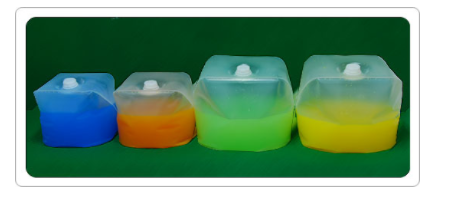

SPECIFICATION
We have a broad product line to meet the requirements of various packaging applications and customer demands 5L, 18L clean tainers are currently not available, it will be manufactured in the future.
Capacity | 10L | 20L |
Inlet part Inner Diameter | 32 Ø(mm) screw type |
Inner Container Dimension (mm)
W X L X H | 237 X 237 X 237 | 293 X 293 X 293 |
Outer supporting material Dimension (mm)
W X L X H | 250 X 250 X 230 | 300 X 300 X 285 |
Packing unit | 50ea / box | 50ea / box |
Packing weight (including cap) | 7.2kg | 11.1kg |
Packing dimension (mm)
W X L X H | 640 X 660 X 490 | 660 X 770 X 610 |
Material | Body | LDPE |
Inlet | HDPE |
weight (including cap) | 120g ± 10g | 170g ± 10g |
Thickness | 0.3mm | 0.3mm |
Heat-resistant temperature | 80˚C |
