5 - Star (M)

5-Star(M) is an exclusive hard solution for CR-39 and middle-refraction, and it has over 7.0 Bayer ratio. Its main solvent is the water and is noninflammable, not harmful to the human body, and eco-friendly. Additionally, it has a long lifespan and can save the logistics cost, and you can store it in the room temperature. Its use of noninflammable and noncombustible solvent helps to maintain consistent coating quality.

Patent Technology
5-Star(M) is the innovative hard solution which has five characteristics that were not seen is Sol-Gel hard solution so far. Its main solvent is the water, and it is considered as the general goods when exporting, letting you save the logistics cost. Since it is not a dangerous article, you can use this hard solution easily and safely.


Product performance

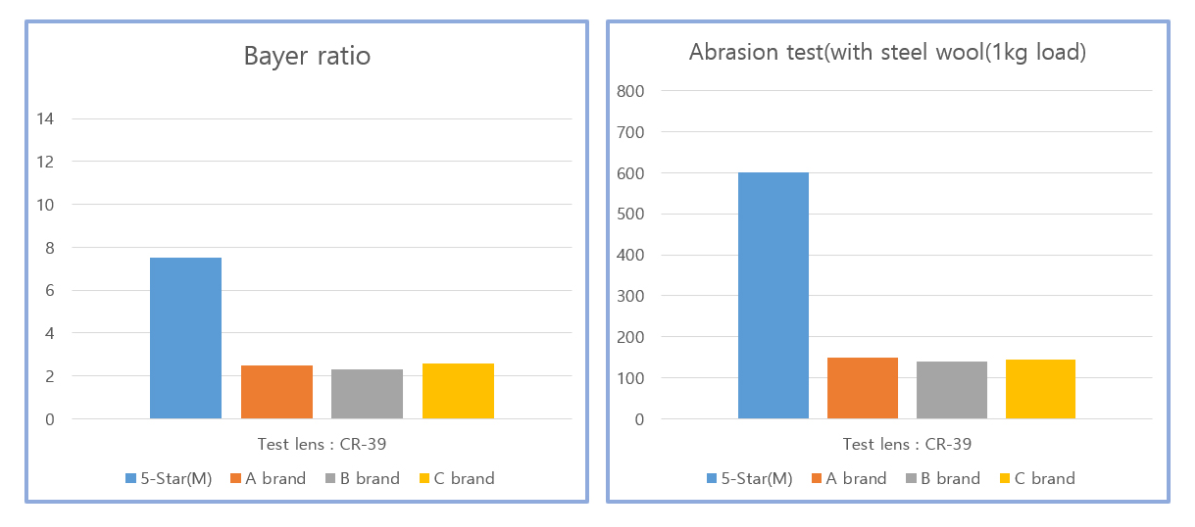

5-Star(M), being developed based on the cutting-edge technology of DON R&D team, has over 7.0 Bayer ration, and it can withstand over 600 times of Steel Wool abrasion test with a 1.0kg load.


◆ Applied condition ◆

Coating Method

Dip coating

Coating Condition

Drawing Speed: 40~50 seconds for 75mm lens

Cabinet Temperature : 15~20˚C(Celsius)

Relative Humidity : Less than 40%

Coating Solution Temperature : 10~15˚

Pre cure

Over 80˚C, over 10 minutes

Post cure

Over 110˚C, over 120 minutes

Supplement of the Coating Solution

Maintain the specific gravity at 1.070 in 10˚C by inserting DI-Water in the circulating coating solution and supplementing 5-star(M) concentrate.


◆ Product Property ◆

Name

5-Star(M)

Appearance

Half-transparent liquid

Specific Gravity (10˚C)

1.060 ~ 1.080

Viscocity
(csp, Brookfield, 10˚)

7.0 ~ 8.0

Solid

31±1%.

PH(10˚)

4.0 ~ 5.0

◆ Coat-layer Characteristics ◆

Item

Test Method

5-Star (M)

Penetration Ratio

550nm, 2.5μm thickness

>95%

Refractive Index

Ellipsometry(589nm)

1.52

Adhesion

ASTM D3359

5B

Pencil Hardness

ASTM D3363

8H

Scratch Durability

Steel Wool #0000, 1.0kg, 600cycles

No Visual Scratch

Hot Water Test

90 - 95C, 30min

NO Damage
