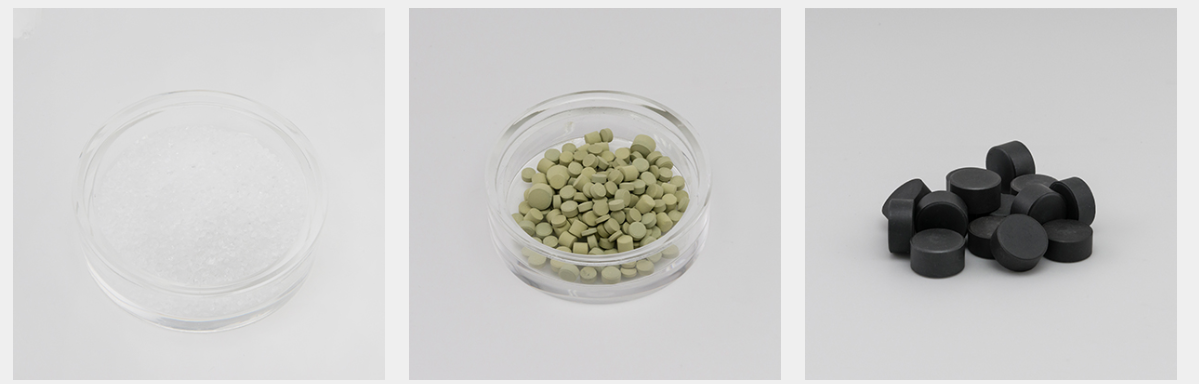

Nonmetal Coating materials

1. AR Coating Material

Commonly used AR coating materials

- Manufacturing and selling directly such as SiO2, ZrO2, I.T.O, TiO2, Al2O3. etc

Special vacuum coating materials

- SV-5(OH-5), SV-20(OS-50), SV-7(for high index))

- SV-8(for middle index) SV-21(Ti+Al), SV-55(SiO2+Al2O3), SV-71(OA-600), etc

Functional coating materials for improving adhesiveness

- SV-10, SiO, Cr

2. Nonmetal Coating meterials

Cat. No.	Materials	Formula	Order Information	Refractive Index/Wavelength	Transmission Range	Evaporation Temperature	Notes
7610	Aluminium	AIF3	Granules about 1-3mm	1.35 at 500 nm	200 – 8000 nm	800–1000 nm	UV - Coatings
8012	Aluminium 0Xide	Ai2O3	Granules about 1-2.5mm	1.63 at 550 nm	200 – 5000 nm	2000-2200 ℃	Multilayers Protective Films
8013			Granules about 1-2mm
8014			Tablets about 1g Ø10.5mmX3.5mm
8015			Granules about 1-3.5mm
8016			Granules about 1-4mm
8017			Granules about 3-5mm
8018			Granules about 4-6mm
8019			Granules about 1-3mm
80143			Granules about 1-3mm
1710	Barium Fluoride	BaF2	Granules about 1-4mm	1.48 at 500 nm	250 – 15000 nm	1300-1500 ℃	IR – transparent Layers
2711	Calcium Fluoride	CaF 2	Granules about 1-4mm	1.48 at 550 nm	150 – 12000 nm	1400-1450 ℃
2263	Cerium(Ⅲ) Fluoride	CeF3	Granules Less than 1mm	1.63 at 500 nm	300 – 5000 nm	1400-1600 ℃	Multilayers Antireflection Coatings
2260			Granules Less than 1-3mm
2261			Granules Less than 1-4mm
2262			Granules Less than 2-4mm
2264			Tablets about Ø7mmX5.3mm
6023	Cerium (Ⅳ) Oxide	CeO2	Granules about 1-3mm	2.0 at 500 nm 1.63 at 550 nm	400 – 16000 nm	About 2000 ℃	Multilayers Antireflection Coatings
6022	Cerium (Ⅳ) Oxide	CeO2	Tablets Ø20mm X 15mm	2.0 at 500 nm 1.63 at 550 nm	400 – 16000 nm	About 2000 ℃	Multilayers Antireflection Coatings
2410	Chromium (Ⅲ)Oxide		Powder less than 0.3 mm	2.4 at 1800 nm	1200 – 10000 nm	1900 – 2000 ℃	Absorbing Layers for Optical Lenses
1610	Dysprosium Fluoride	Dyf2	Granules about 1-4mm	1.56 at 500 nm	220 – 12000 nm	1200 – 1300 ℃	IR – Coatings
1501	Hafnium(Ⅳ) Oxide UV	HfO2	Tablets about 2g Ø9mm X 4.2mm	1.9 at 500 n	230 – 7000 nm	2300 – 2500 ℃	Multilayers esp. for UV spectral region
1502			Granules about 1-4mm
1503			Tablets Ø 14mm X 5mm
3110	Iron(Ⅲ) Oxide	Fe2O3	Granules about 1-4mm	3.0 at 550 nm
1129	Lanthanum(Ⅲ) Fluoride	LaF3	Granules about 1-3mm	1.60 at 500 nm	220 – 14000 nm	1200 – 1600 ℃	Multilayers
1911	Lanthanum Oxide	LaF3	Granules about 1-4mm	2.0 at 500 nm
8221	Magnesium Oxide	MgO	Granules about 1-3mm	1.70 at 550 nm	200 – 8000 nm	1700℃
8021	Magnesium Fluoride	MgF2	Granules about 1-2.5mm	1.38 at 550 nm	200 – 7000 nm	1300 – 1600 ℃	Antireflection Coatings Protective Films Multilayers on Glass, Plastics and Jewelry
8022			Granules about 2-4mm
8023			Granules about 1-3mm
8024			Granules about 1-1.5mm
8025	Magnesium Fluoride	MgF2	Granules about 4-6mm	1.38 at 550 nm	200– 7000 nm	1300 - 1600℃	Antireflection Coatings Protecive Films Multilayers on Glass, Plastics and Jewelry
8026			Granules about 0.7-1.2mm
8027			Granules about 1-2mm
8028			Granules about 3-4mm
6410	Cryolite	Na3 AIF6	Granules about 1-4mm	1.33 at 500 nm	250 – 14000 nm	800 -1200℃	Multilayers
2210	Chiolithe	Na5Al3F14	Granules about 1-4mm	1.33 at 500 nm	250 – 14000 nm	800 - 1000℃	Multilayers Antireflection Coatings
2211	Chiolithe	Na5Al3F14	Tablets about 0.5g Ø11mm X 3.6mm	1.33 at 500 nm	250 – 14000 nm	800 - 1000℃	Multilayers Antireflection Coatings
6710	Neodymium(Ⅲ) Fluoride	NdF3	Granules about 1-4mm	1.60 at 500 nm	170 – 14000 nm	1200 - 1600℃	Multilayers
9311	Neodymium(Ⅴ) Oxide	Nd2 O3	Granules about 1-3mm	2.1 at 550 nm		1800 - 1860℃
3070	Niobium Oxide	Nb2O5	Granules about 1-3mm	2.3 at 550 nm	350 – 1000 nm	1800 - 1900℃
3071	Niobium Oxide	Nb2O5	Granules about 1-4mm	2.3 at 550 nm	350 – 1000 nm	1800 - 1900℃
7310	Lead(Ⅱ) Fluoride	PbF 2	Granules about 1-4mm	1.75 at 500 nm	250 – 17000 nm	700 - 1000℃	Multilayers
8067	Silicon Monoxide	SiO	Granules about 1.5-3mm	1.8 at 1000 nm	800 - 8000 nm	1200 - 1600℃	Multilayers Barrier Layers Antireflection Coatings Protective Films Jewelry
8068			Granules about 2-3mm
8069			Granules about 2-4mm
8070			Granules about 1-3mm
8071	Silicon Monoxide	SiO	Granules about 5-8mm	1.8 at 1000 nm	800 – 8000 nm	1200 - 1600℃	Multilayers Barrier Layers Antireflection Coatings Protective Films Jewelry
8072			Granules about 1-2mm
8073			Granules about 1-4mm
8074			Granules about 3-5mm
8075			Granules about 6-12mm
8076			Granules about 6-10mm
8077			Granules about 13-16mm
8078			Granules about #50 mesh
8079			Granules about #100 mesh
8080			Granules about 4-6mm
8061	Silicon Dioxide	SiO	Granules about 0.5-7mm	1.46 at 500 nm	200 – 2000 nm	1800 - 2200 ℃	Multilayers Hard Coatings of low Refractive Index Dielectric Coatings
8062			Granules about 1-3mm
8063			Granules about 2-4mm
8064			Granules about 1-2.5mm
8065			Granules about 1-2mm
8066			Granules about 3-5mm
80622			Granules about 1.5-3mm
80623			Granules about 0.8-1.8mm
80661			Granules about 5-10mm
8561			Disc Ø22mm X 10mm
8562			Disc Ø25mm X 10mm
8563			Disc Ø30mm X 10mm
8564			Disc Ø60mm X 10mm
8565			Disc Ø25mm X 10mm
80624		“P”-type	Granules about 1-3mm
80625		“P”-type	Granules about 0.8-2.5mm
7021	Tnatalum(V) Oxide	Ta2 O5	Granules about 1-3mm	2.1 at 500 nm	300 – 7000 nm	1900- 2200℃	Multilayers Dielectric films for Thin film capacitors
7022			Granules About 1-5mm
7023			Tablets Ø14mm X 8mm
70211			Granules (Black) about 1-3mm
8172			Tablets about 0.5g Ø7mm X 3mm
8301	Titanium(Ⅱ) Oxide	TiO	Granules about 2-4mm			1700 - 2000℃	Antireflection Coatings Interference Filters Protective Films Beam Splitters Jewelry
8303			Granules about 0.8-2mm
8304			Tablets about 1g Ø9.4mm X 4.5mm
8281	Titanium(Ⅲ) Oxide	Ti2 O3	Tablets about 1g Ø9.2mm X 7.5mm			1800 - 2000℃	Antireflection Coatings Interference Filters Protective Films Beam Splitters Jewelry
8282	Titanium(Ⅲ) Oxide	Ti2 O3	Granules about 1-3mm			1800 - 2000℃
8081	Titanium(Ⅳ) Oxide	TiO2	Tablets about 1g Ø8.7mm X 5mm	2.4 at 500 nm	4000 – 2000 nm	2000- 2200 ℃	Highly refractive Layers Multilayers
8082			Tablets about 2g Ø13mm X 5.5mm
8083			Granules about 1-2.5mm
8084			Granules about 1-4mm
8085			Granules about 3-5mm
8086			Granules about 2-4mm
8087			Granules about 1-3mm
8091	Yttrium Oxide	Y2O3	Tablets about 1g Ø10.7mm X 4.7mm	1.79 at 500 nm	250-8000 nm	2300- 2500℃	Multilayers Insulating layers
8092	Yttrium Oxide	Y2O3	Granules about 1-2.5mm	1.79 at 500 nm	250-8000 nm	2300- 2500℃	Multilayers Insulating layers
1810	Ytterbium Fluoride	YbF3	Granules less 1mm	1.52 at 500 nm	220– 12000 nm	1200- 1300℃	I R – Coatings
8710	Yttrium Fluoride	YF3	Granules Less than 1mm	1.3 at 10600 nm	200– 14000 nm	About 1100℃	I R – Coatings
3571	Zinc Oxide	ZnO	Granules Less than 1-3mm	2.0 at 550 nm	400-16000 nm	100 - 1210℃
8810	Zinc Selenide	ZnSe	Granules about 1-4mm	2.6 at 630 nm	600-15000 nm	600- 900℃	Multilayers, IR-Filters, Color Filters
3541	Zinc Sulfide	ZnS	Tablets about 1g Ø10mm X 6mm	2.4 at 550 nm	400-14000 nm	1000 - 1100℃	Multilayers Protective Films Cold Light Mirrors Beam Splitters
3542			Granules about 1-4mm
3543			Poweder Less than 1mm
