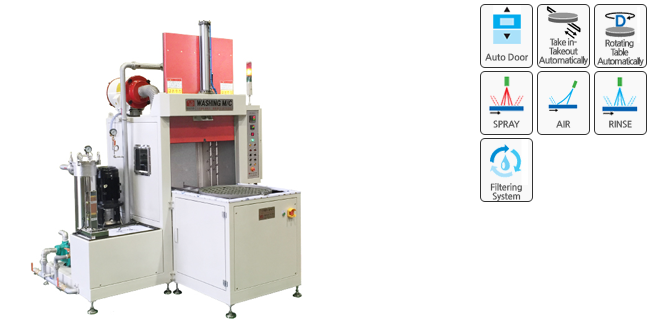

JWA-630ㆍSA



Process


Description
● Cleaning process of spray and air blow is proceeded in a row by rotating table of cleaning reagent
● process is proceeded automatically by mounting automatic in&out device of table

⊙ Converted to the dedicated washing device when mounting dedicated nozzle and JIG

Model

JWA-630·SA

Weight of the Maximum
VBIUS of deaning Resgent

Ø630 x 400H x 100kg

Pump Output Pressure

200 LPM  /  0.5~0.8 MPa

Pump Motor

5.5kW

Heater Capacity

10kW x 2 = 20kW

Tank Capacity

260 L

Air Blow Pressure

4.8m3/min, 0.5 MPa

Electric Capacity

3phase 26kW

Machinery Size

2100(W) x 2100(D) x 2600(H)


Model

JWA-630·SRA

JWA·F-630·SA(FILTERING)

Weight of the Maximum
VBIUS of deaning Resgent

Ø630 x 400H x 100kg

Spray Pump Output Pressure

200 LPM  /  0.5~0.8 MPa

Air Blow Pressure

4.8m3/min ,  0.5 MPa

Spray Pump Motor

5.5kW

Rinse or Fliltering Pump Motor

2.2kW

Spray or Dirty Heater Capactity

10kW x 2 = 20kW

Rinse or Clean Heater Capacity

10kW x 2 = 20kW

Spray or Dirty Tank Capsoty

270 L / 220 L

Rinse or Clean Tank Capacity

245 L / 230 L

Electric Capacity

3phase 46kW / 3phase 48kW

Machinery Size

2100(W) x 2800(D) x 2600(H)
