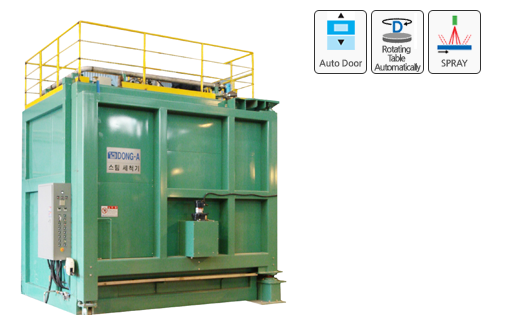

Large Turn Table / 9Ton




Process


Description
● It is large weight spray washer and cleanses by high pressure injection with hot water (alkali)
● Cleaning reagent is fixed at the automatic open and shut door and clearises by spraying withmoving back
● and forth of nozzle / table rotary

Object to be cleaned

Steel mill, Generator, Large sized motor. Winding, etc

Weight of the Maximum Value of Cleaning Reagent

Ø2500 x 1800H x 9Ton

SPRAY

Pump Output Pressure

1700 LPM  /  0.5 MPa + 0.8 MPa

Pump Motor

22kW + 37kW

STEAM CAPA

400kg/hr ,  0.5 MPa

BUBBLE

FILTER PUMP

100 LPM  /  0.15 MPa

Pump Motor

0.75kW

FILTER HOUSING

Ø200 x 850L

BAG FILTER

150μm x 2P

DRIVE

TABLE

0.75kW

NOZZLE

0.2kW

Door Open and Close

HYD, Cylinder

Exhaust Blower

1.5kW  (25 m3/min  x  170 mmAq)

OIL SKIMMER

0.04kW (1Ø x 220V) = 2EA

DETERGENT

ALKALI+ WATER

Electric Capacity

3Phase 63kW

Machinery Size

3600(W) x 3300(D) x 3700(H)
