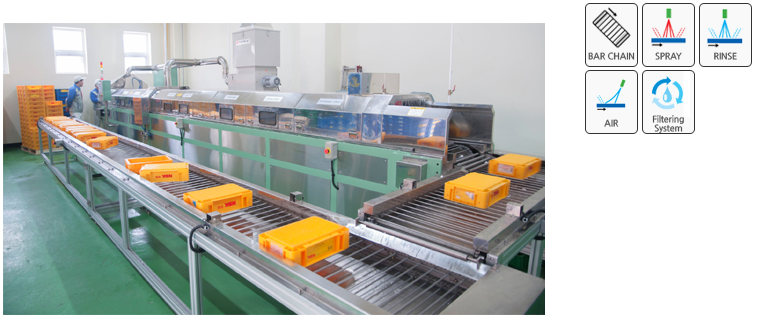

Throught-Type Box Washer
Process
Description
● Extend the box life expectancy effect and prevent pollution of products by removing box surface, a bump,
the corners, etc perfectly
● Hot water spray by jet injection shows excellent cleaning power, and if an exclusive detergent is mixed,
cleaning power of oil is excellent
● It shows a definite cleaning effect with a brush
● It shows a perfect drying effect by arraying air nozzle without a dead zone and strong air knife and turbo fan
● Keep an excellent cleanliness with filtering system divided into dirty tank and clean tank
● It is easy to use and save time because carrying in and out of part is handled at the same place
How to clean | Sequential washiftg by tunnel type | |
|---|---|---|
Weight of the Maximum Value of Cleaning Reagent | L, M, S BOX / 320(W) x 120(H) | |
Returning | TYPE | Bar Chain Conveyor Type |
DRIVE MOTOR | 0.75kW (Inverter Control) | |
OUT CONVEYOR | 0.2kW = 2EA | |
WASHING | PUMP | 7.5kW |
FILTER | 150μm x 2P | |
TANK | 340 L | |
HEATER | 30kW | |
RINSE | PUMP | 5.5kW |
FILTER | 150μm x 2P | |
TANK | 340 L | |
HEATER | 30kW | |
FILTERING SYSTEM | PUMP | 0.75kW = 2EA |
FILTER | 100μm x 2P = 2EA | |
A Dust Collector | 0.81kW (1000 m3/h) | |
BRUSH | 0.2kW | |
Electric Capacity | 3Phase 90kW | |
Machinery Size | 3300(W) x 9800(L) x 2400(H) | |
