FULL AUTO 3-SUMP

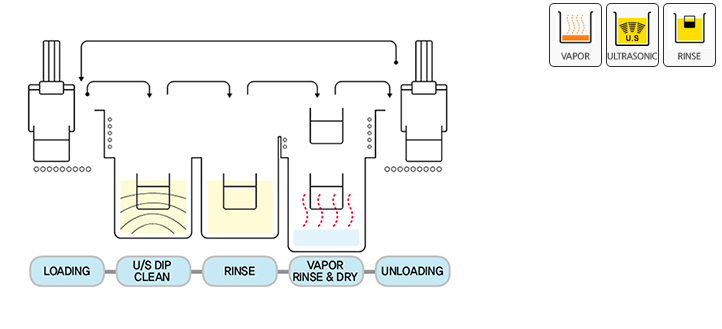

Process
Description
● If the basket is loaded in a delivery roller and clamped, the basket is carried and taken in stage by stage by up and down lift and transfer with cleaning & drying and then taken out
● Fluid like a rinse that was supplied by automatic supply system is overflown to the ultrasonic waves, which is easy to exchange / manage /refill the cleaning fluid
● It has a huge effect in harmony with Ultrasonic and cleaning fluid and an automatic equipment that operates ultrasonic cleaning, rinse, steam cleaning/drying
Electric Capacity | Ultrasonic Waves | Ultrasonic Heater | Steam Heater | Regenerator Heater | Refrigerator |
|---|---|---|---|---|---|
3EA 48kW | 1200W x 28kHz | 4kW x 2 = 8kW | 5kW x 4 = 20kW | 3kW x 2 = 6kW | 15RT |
Lift Motor | Transfer Motor | Ultrasonic Tank | Rinse Tank | Cooling Tank | Feed Tank |
0.4kW | 0.2kW | 515 L | 555 L | 680 L | 200 L |
Ultrasonic Filtering Pump | Circulating Pump | Ultrasonic Filter | Lift Drum | Conveyor Roller | BASKET SIZE |
0.75kW | 0.6kW | 50μm x 20" L | Ø200 x 2rows BEND | Ø50.8 | 800(W) x 430(D) |
