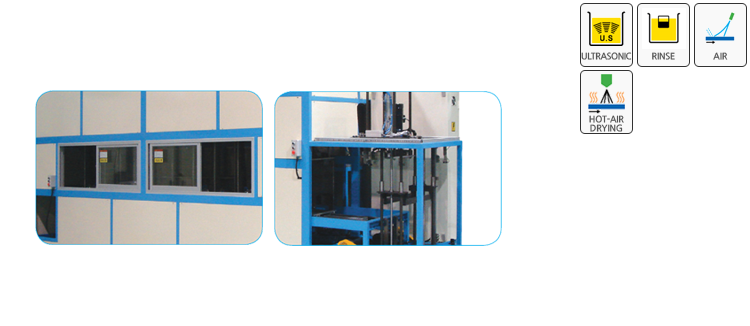

Ultrapure Water FULL AUTO MULTI SUMP
Process
Description
● It is a sediment type of ultrasonic wash er and rinse with pure water after clean ing with ultrasonic alkali
● As an option, it is possible to manufac ture tt by applying air bubble at each scouring kier instead of ultrasonic wave
How to clean | Alkali , Dl.Water deposited washing | |
|---|---|---|
Weight of the Maximum Value of Cleaning Reagent | 570(W) x 415(D) x 240(H) | |
Returning | LOADING | RS Chain Conveyor |
In-Process CARRIER | Cylinder Lift Carrier | |
UNLOADING | Rodless Cylinder(Shuttle) | |
Loading | Lift CYL + Driven Roller Conveyor | |
ALKALI-1'st | ULTRASONIC | 1200W x 28kHz (1Ø x 220V) |
TANK | 230 L | |
HEATER | 8kW x 2 = 16kW | |
ALKALI-2'nd | ULTRASONIC | 1200W x 28kHz (1Ø x 220V) |
TANK | 260 L | |
HEATER | 8kW x 2 = 16kW | |
RINSE-1'st | TANK | 230 L |
HEATER | - | |
RINSE-2'nd | TANK | 260 L |
HEATER | 8kW x 2 = 16kW | |
RINSE-3'nd | TANK | 290 L |
HEATER | 8kW x 2 = 16kW | |
DI. WATER | RO - 300 | |
Electric Capacity | 3Phase 62kW | |
Machinery Size | 1800(W) x 8000(L) x 3000(H) | |
