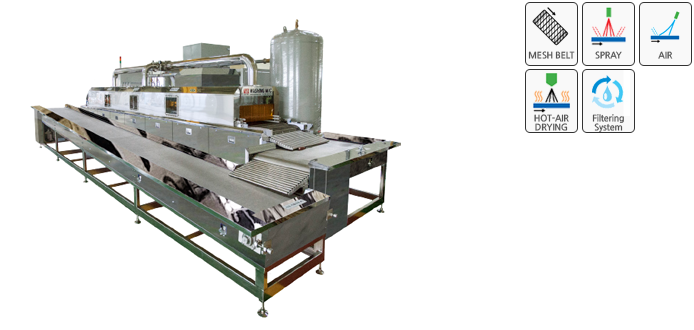

Through-type Spray Washer/Hot-air Drying Type
Process
Description
● Hot water spray by jet injection shows excellent cleaning power, and if an exclusive detergent is mixed,
● cleaning power of oil is excellent
● It has a definite cleaning effect with a strong air blow and hot-air drying
● It keeps an excellent cleanliness with filtering system divided into dirty tank and clean tank
● It is easy to use and save time because carrying in and out of part is handled at the same place.
How to clean | Sequential washing by through-type | |
|---|---|---|
Weight of the Maximum Value of Cleaning Reagent | 650(W) x 250(H) | |
Returning | TYPE | Mesh Belt Conveyor Type |
MAIN MOTOR | 1.5kW (Inverter Control) | |
Return Conveyor Motor (first) | 0.4kW (Inverter Control) | |
Return Conveyor Motor (second) | 0.75kW (Inverter Control) | |
TABLE Phase~F.L | 950mm | |
SPRAY | PUMP | 7.5kW |
FILTER | 100μm x 2P | |
TANK | 370 L | |
HEATER | 10kW x 3 = 30kW | |
FILTERING | PUMP | 4kW |
FILTER | 50μm x 2P | |
TANK | 456 L | |
HEATER | 10kW x 3 = 30kW | |
AIR BLOW | COMPRESSED AIR | 9.9 m3/min , 0.5 MPa |
HOT AIR DRY | BLOWER | 0.6kW - 4set |
HEATER | 12kW - 4set | |
Air Blow | A Dust Collector | 1.5kW (25 m3/min x 230 mmAq) |
Electric Capacity | 3Phase 127kW | |
Machinery Size | 3600(W) x 8000(L) x 2400(H) | |
