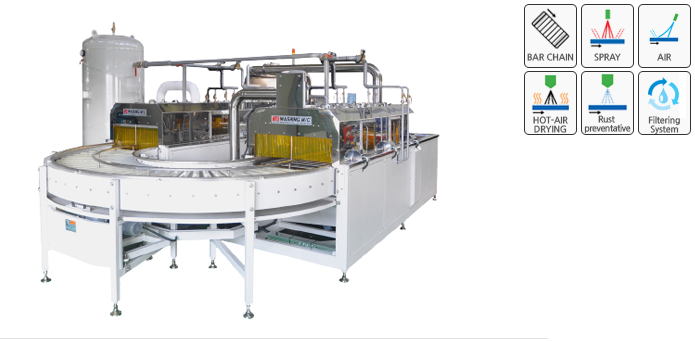

Through-type Spray Washer/Hot-air Drying Type+Rust
( Preventative Type )
Process
Description
● A large amount of cleaning hot water is jet injection consecutively for Cleaning and rust proof
● It has a definite cleaning effect with a strong air blow and hot-air drying
● It keeps an excellent cleanliness with filtering system divided into dirty tank and clean tank
● It is easy to use and save time because carrying in and out of part is handled at the same place
How to clean | Sequential washing by through-type | |
|---|---|---|
Weight of the Maximum Value of Cleaning Reagent | BASKET / 300(W) x 480(D) x 250(H) | |
Returning | TYPE | Bar Chain Conveyor Type |
DRIVE MOTOR | 0.75kW = 2EA (Inverter Control) | |
CURVE CONVEYOR | 0.4kW (Inverter Control) | |
SPRAY | PUMP | 7.5kW |
FILTER | 100μm x 2P | |
TANK | 240 L | |
HEATER | 10kW x 2 = 20kW | |
FILTERING | PUMP | 4kW |
FILTER | 50μm x 2P | |
TANK | 300 L | |
HEATER | 10kW x 2 = 20kW | |
Rust Preventative | PUMP | 0.75kW |
FILTER | 100μm x 2P | |
TANK | 230 L | |
AIR BLOW | COMPRESSED AIR | 3.9m3/min , 0.5 MPa |
HOT AIR DRY | BLOWER | 0.6kW - 2set |
HEATER | 14kW - 2set | |
Air Blow | A Dust Collector | 1.5kW (25 m3/min x 230 mmAq) |
Electric Capacity | 3Phase 86kW | |
Machinery Size | 4400(W) x 6600(L) x 2400(H) | |
